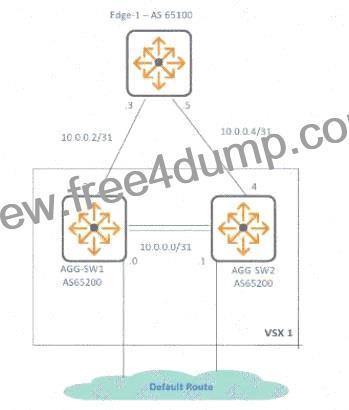

The requirement is to prevent loops on Edge-1 switch ports connected to third-party CCTV switches that do notsupport STP. The solution must also include an automatic recovery feature if a port gets disabled.
* Loop Prevention without STP:When connecting to non-STP devices, standard STP loop prevention (like BPDU Guard) might not work if the connected device doesn’t send BPDUs. AOS-CX offers a feature called loop-protect which sends probes to detect loops in non-STP environments.
* Automatic Recovery:Features that disable ports (like BPDU Guard or Loop Protect) often have a timeout or auto-recovery option (port-disable-timer for Loop Protect) allowing the port to automatically re-enable after a configured period.
* Analysis of Options:
* A: LACP fallback applies to LAGs, not general loop prevention.
* B: TCN-guard is an STP feature, irrelevant here.
* C: Suggests spanning-tree with bpdu-guard timeout. BPDU Guard detects loops by listening for BPDUs, which these CCTV switches don’t send. However, the timeout featuredoesprovide the required automatic recovery mechanism if the portweredisabled by BPDU Guard.
* D: UDLD detects unidirectional links, not typically bridging loops caused by topology.
* Re-evaluation:The ideal AOS-CX feature is loop-protect with port-disable-timer. Since this isn’t explicitly an option, we must evaluate the given choices. Option C is theonlyone that mentions a mechanism (bpdu-guard timeout) providing automatic recovery from a disabled state. While BPDU Guard isn’t the right detection mechanism here, it’s the closest fit regarding the auto- recoveryrequirement. It’s possible the question implicitly assumes some stray BPDUs might trigger it or that it’s the intended “best fit” answer despite the detection mechanism mismatch.
* Conclusion:Given the options, Option C is the most plausible because it includes the timeout feature associated with bpdu-guard, fulfilling the automatic recovery requirement, even though BPDU guard itself is not the ideal detection method for loops involving non-STP devices.
References:AOS-CX Spanning Tree Protocol Guide (BPDU Guard, Timeout), AOS-CX Interface Configuration Guide (loop-protect feature). This relates to “Switching” (19%) and “Network Resiliency and virtualization” (8%) objectives.

The question involves configuring an OSPF virtual link to extend area 0 across a non-backbone area, based on an exhibit (not provided) and four configuration options (A to D). Since the exhibit is unavailable, I will assume a typical scenario where a virtual link is needed to connect two area 0 segments through a transit area (e.g., area 1).
* Analysis of Options (Assumed Context):A virtual link is configured using the area <transit-area> virtual-link <router-id> command in the OSPF process. The correct option likely includes:
* Option A:Incorrect syntax or incorrect router ID/area for the virtual link.
* Option B:Incorrect configuration, possibly missing the virtual link or using wrong parameters.
* Option C:Correct. Likely includes the proper command, e.g., area 1 virtual-link 2.2.2.2, where area 1 is the transit area and 2.2.2.2 is the router ID of the remote ABR.
* Option D:Incorrect, possibly configuring an unnecessary or incorrect virtual link.
* Why Option C is Correct:OSPF requires all areas to connect to the backbone area (area 0). If two area
0 segments are separated by a non-backbone area (e.g., area 1), a virtual link is configured between the Area Border Routers (ABRs) to logically extend area 0 through the transit area. The command area
<transit-area> virtual-link <remote-router-id> is used, specifying the transit area and the router ID of the remote ABR. Option C is assumed to provide the correct syntax and parameters based on standard OSPF virtual link configurations, ensuring area 0 connectivity and proper route advertisement.
* Relevance to Certification Objectives:
* Routing (16%):Designing and troubleshooting OSPF topologies, including virtual links.
* Troubleshooting (10%):Resolving OSPF area connectivity issues.
References:
HPE Aruba Networking AOS-CX Configuration Guide: OSPF Configuration, detailing virtual link setup.
HPE7-A06Study Guide: Covers OSPF advanced configurations like virtual links.
RFC 2328: OSPF Version 2, explaining virtual link functionality.

The question asks for the reason for using WPA3-Enterprise (CCM-128) when deploying Wi-Fi 6 networks.
* WPA3-Enterprise Modes:
* CCM-128:Uses AES-CCMP-128 (same cipher as WPA2). Its main purpose is to provide a transition path from WPA2 to WPA3. It allows both WPA3-capable and WPA2-only clients to connect to the same SSID. It enforces Protected Management Frames (PMF, 802.11w) when possible(required for WPA3, optional for WPA2). It’s often called “Transition Mode” or
“Compatibility Mode”.
* GCMP-256:Uses stronger AES-GCMP-256. It operates in “WPA3-Only Mode” and doesnot allow WPA2 clients.
* Wi-Fi 6 (802.11ax) & WPA3:Wi-Fi 6 certification requires support for WPA3.
* Analysis of Options:
* A: Incorrectly calls CCM-128 “192-bit mode” and “WPA3 only”.
* B: Correctly calls CCM-128 “Transition Mode” and states it allows WPA2 clients.
* C: Correctly calls CCM-128 “Compatibility Mode” and states it allows WPA2 clients.
“Compatibility Mode” and “Transition Mode” are used interchangeably for this WPA3 mode.
* D: Incorrectly calls CCM-128 “Only Mode” and states no WPA2 support.
* Conclusion:Both Option B and Option C accurately describe WPA3-Enterprise (CCM-128). It is designed as a transition/compatibility mode to allow environments to adopt WPA3 features (like mandatory PMF for capable clients) while still supporting legacy WPA2 clients on the same network during the migration period. Selecting either B or C would be functionally correct based on common terminology.
References:Wi-Fi Alliance WPA3 specifications, Aruba WPA3 deployment guides, 802.11ax standard information. This relates to the “WLAN” (9%) and “Security” (10%) objectives.

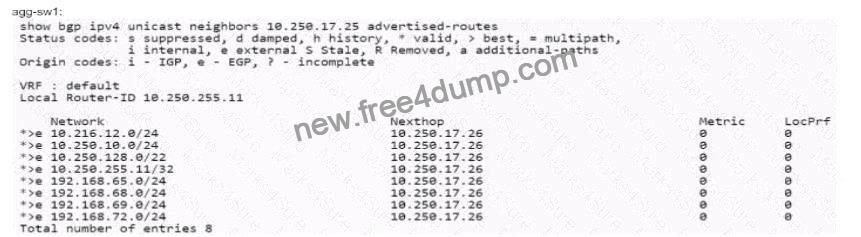

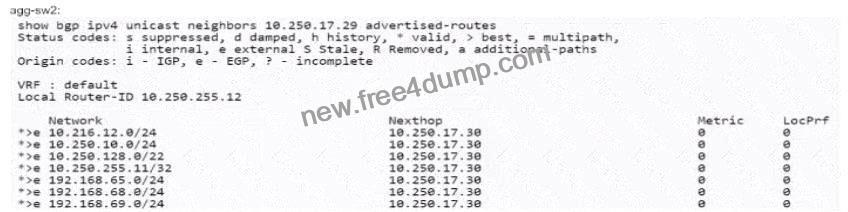

The question involves troubleshooting BGP issues on an AOS-CX switch, and the task is to identify the appropriate CLI command to begin the troubleshooting process.
* Analysis of Options:
* Option A (show run | route destination):Incorrect syntax; the show running-config command with a filter is not specific to BGP troubleshooting.
* Option B (show debug start):Incorrect; AOS-CX does not use show debug start for initiating debugging.
* Option C (show buffer | debug):Incorrect; this is not a valid AOS-CX command for BGP troubleshooting.
* Option D:Correct. The show debug destinations command displays the current debug settings, including whether BGP debugging is enabled, which is a critical first step in troubleshooting BGP issues.
* Why Option D is Correct:To troubleshoot BGP issues, the first step is to verify if debugging is enabled for BGP events, as this provides detailed logs of session states, messages, and errors. The show debug destinations command on AOS-CX switches shows which debug types (e.g., BGP) are active and where logs are sent (e.g., console, syslog). If BGP debugging is not enabled, the administrator can enable it using debug bgp to capture relevant information, making this the ideal starting point for BGP troubleshooting.
* Relevance to Certification Objectives:
* Troubleshooting (10%):Involves performing advanced troubleshooting of routing protocols like BGP.
* Routing (16%):Includes diagnosing BGP session and configuration issues.
References:
HPE Aruba Networking AOS-CX Configuration Guide: Debugging and Logging, detailing debug commands.
HPE7-A06Study Guide: Covers BGP troubleshooting workflows.
HPE Aruba Networking Technical Documentation: AOS-CX CLI Reference, explaining show debug destinations.

The goal is to configure a Link Aggregation Group (LAG) on a VSX cluster (pair of CX 8325 switches) that connects to an Aruba 7000 series gateway undergoing Zero Touch Provisioning (ZTP). The LAG needs to support “protocol-based port redundancy” (LACP) and allow connectivity during ZTP.
* VSX Requirement:Since the LAG connects to two separate physical switches operating as a VSX pair, the LAG must be configured as a Multi-Chassis LAG (MC-LAG) on the switches. This allows the gateway to form a single LAG across both upstream devices. The command multi-chassis under the interface lag <id> context enables this.
* Protocol Redundancy Requirement:”Protocol-based port redundancy” indicates that Link Aggregation Control Protocol (LACP) should be used to dynamically negotiate and manage the LAG bundle between the switches and the gateway. The command lacp mode active enables LACP in active negotiation mode.
* ZTP Requirement:During ZTP, the gateway might not have its full configuration, including LACP settings, enabled immediately. To ensure the gateway can establish basic IP connectivity for ZTP (e.g., reach Activate/Central via DHCP/DNS), the switch ports should allow traffic even if LACP negotiation hasn’t completed. The lacp fallback feature enables this, allowing individual LAG member ports to become active if LACP PDUs are not received from the peer.
* Analyzing the Options:
* A)Configures lacp mode active and lacp fallback butlacksthe multi-chassis command required for VSX.
* B)Correctly configures the LAG as multi-chassis, enables lacp mode active, and enables lacp fallback. This meets all requirements.
* C)Configures multi-chassis but uses potentially older or less standard syntax lacp enable and lacp fail-over instead of lacp mode active and lacp fallback.
* D)Lacks the multi-chassis command and uses potentially older/less standard syntax.
* Conclusion:Option B provides the complete and correct configuration using standard AOS-CX syntax to create an MC-LAG on the VSX pair with LACP enabled for redundancy and LACP fallback enabled to support gateway connectivity during ZTP.
References:AOS-CX VSX Guide (MC-LAG configuration), AOS-CX Link Aggregation Guide (LACP, LACP Fallback commands and usage), ArubaGateway ZTP documentation. This relates to “Network Resiliency and virtualization” (8%), “Switching” (19%), and “Connectivity” (9%) objectives.

The question asks which function is executed on both VSX members (CX 8325 switches) during normal operation in a VSX cluster.
* Analysis of Options:
* Option A:Correct. Both VSX switches reply to ARP requests with the cluster’s virtual MAC (vMAC) for SVIs configured with active-gateway, ensuring consistent Layer 3 forwarding.
* Option B:Incorrect. PIM (Protocol Independent Multicast) and PIM-DR roles are typically handled by one switch, not both, in a VSX cluster.
* Option C:Incorrect. DHCP relay or server functions are not necessarily performed by both switches simultaneously.
* Option D:Incorrect. Gratuitous ARP and broadcast hello packets are typically sent by the primary switch or specific protocols, not both VSX members for all cases.
* Why Option A is Correct:In a VSX cluster, the active-gateway feature allows both switches to respond to ARP requests for Switched Virtual Interfaces (SVIs) using a shared virtual MAC address (vMAC). This ensures seamless Layer 3 forwarding and high availability, as clients receive consistent ARP replies regardless of which VSX switch processes the request. The vsx-sync feature ensures the vMAC is synchronized, enabling both switches to perform this function during normal operation, as per HPE Aruba Networking’s VSX architecture.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Designing and troubleshooting VSX for redundancy and active-active forwarding.
* Switching (19%):Implementing Layer 2/3 technologies, including ARP handling in VSX.
* Routing (16%):Ensuring consistent Layer 3 operations in VSX environments.
References:
HPE Aruba Networking AOS-CX Configuration Guide: VSX Configuration, detailing active-gateway and vMAC usage.
HPE7-A06Study Guide: Covers VSX Layer 3 functions and ARP handling.
HPE Aruba Networking Technical Documentation: VSX Active-Gateway Best Practices.

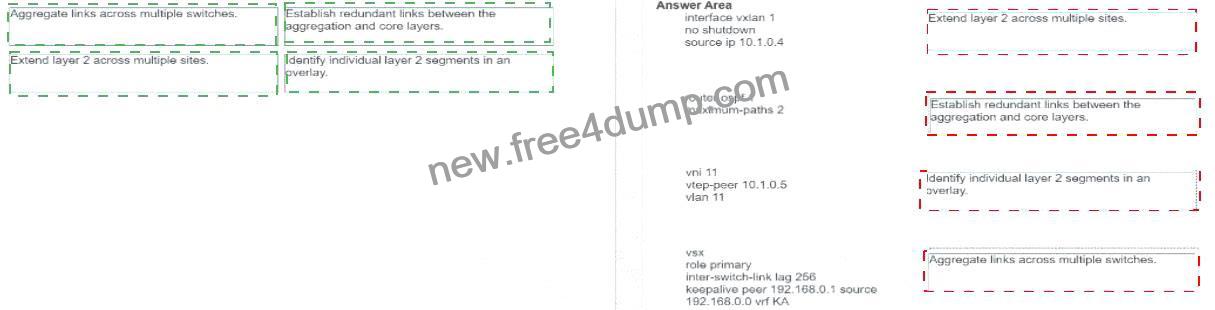

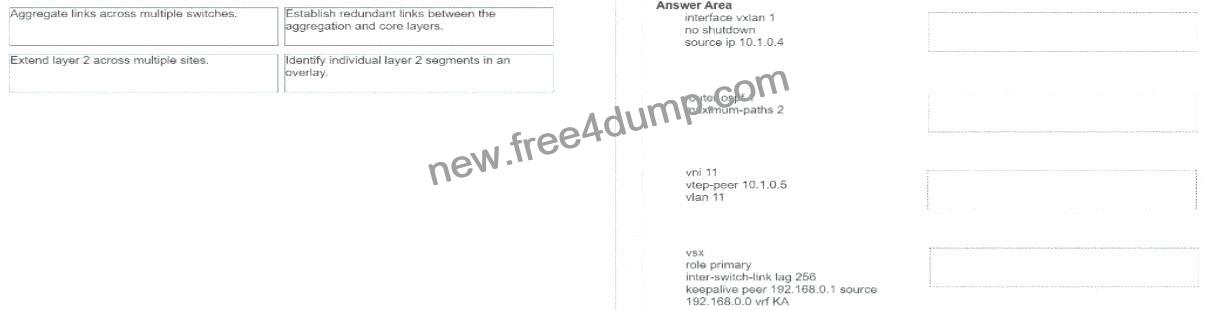

Explanation:
* Aggregate links across multiple switches –>
vsx
role primary
inter-switch-link lag 256
keepalive peer 192.168.0.1 source 192.168.0.0 vrf KA
(Snippet 4)
* Establish redundant links between the aggregation and core layers –> router ospf 1 maximum-paths 2 (Snippet 2)
* Extend layer 2 across multiple sites –>
interface vxlan 1
no shutdown
source ip 10.1.0.4
(Snippet 1)
* Identify individual layer 2 segments in an overlay –>
vni 11
vtep-peer 10.1.0.5
vlan 11
(Snippet 3)
Comprehensive Detailed Explanation along with All References available from related to the HPE Campus Access Switching Expert certification objectives at end of each question below:
* Aggregate links across multiple switches:This requirement describes Multi-Chassis Link Aggregation (MC-LAG), where a device forms a LAG to two separate upstream switches that act as a logical pair. In AOS-CX, VSX (Virtual Switching Extension) enables this functionality. Snippet 4 shows commands related to setting up VSX (vsx, role primary, inter-switch-link, keepalive), which is the foundation for MC-LAG.
References:AOS-CX VSX Guide.Relates to “Network Resiliency and virtualization” (8%), “Switching” (19%).
Establish redundant links between the aggregation and core layers:This often involves Layer 3 routing protocols utilizing multiple paths. Snippet 2 (router ospf 1, maximum-paths 2) configures OSPF to use up to two Equal Cost Multi-Paths (ECMP). If redundant links between aggregation and core result in equal OSPF costs, this command enables load sharing and redundancy at Layer 3.
References:AOS-CX IP Routing Guide (OSPF, ECMP). Relates to “Routing” (16%), “Network Resiliency and virtualization” (8%).
Extend layer 2 across multiple sites:VXLAN (Virtual Extensible LAN) is the standard overlay technology for extending Layer 2 segments over an underlying Layer 3 network, enabling L2 adjacency across different physical locations (sites, racks, pods). Snippet 1 shows the basic configuration of a VXLAN tunnel interface (interface vxlan 1, source ip), which is the core component for VXLAN tunneling.
References:AOS-CX VXLAN Guide.Relates to “Switching” (19%), “Connectivity” (9%).
Identify individual layer 2 segments in an overlay:Within a VXLAN overlay, each separate Layer 2 broadcast domain (typically corresponding to a VLAN) is identified by a unique VXLAN Network Identifier (VNI). This VNI tags the encapsulated traffic. Snippet 3 shows the configuration associating VNI 11 with the local VLAN 11 (vni 11, vlan 11). The vtep-peer command is relevant when using EVPN as the control plane.
This configuration directly maps an L2 segment (VLAN 11) to its identifier (VNI 11) within the overlay.
References:AOS-CX EVPN Guide, AOS-CX VXLAN Guide.Relates to “Switching” (19%), “Connectivity” (9%).

The goal is to configure OSPF on a router so that it advertisesonlya 10.1.0.0/16 summary route for the specific SVIs (VLAN 11, 12, 13, assumed to be within the 10.1.x.x range) to its OSPF neighborswithin the same area (Area 0).
* OSPF Intra-Area Behavior:A fundamental principle of OSPF (link-state protocols) is that all routers within the same area must have an identical Link State Database (LSDB) for that area. This means all routers learn about all the specific networks (Type-1 Router LSAs, Type-2 Network LSAs) within their area. OSPFv2 doesnotsupport summarizing routes in a way that hides specific network LSAs from other routerswithin the same area. Summarization occurs only at area boundaries (by ABRs using Type-
3 Summary LSAs via the area range command) or for external routes redistributed into OSPF (by ASBRs using Type-5 External LSAs via the summary-address command).
* Analysis of Options:
* A) area 0 range 10.1.0.0/16:This command is used on an Area Border Router (ABR) to summarize routes originatingfromArea 0 when advertising theminto another area(e.g., the backbone). It does not affect LSA floodingwithinArea 0. It also includes redistribute connected, which is unrelated here.
* B) summary-address 10.1.0.0/16:This command is used on an Autonomous System Boundary Router (ASBR) to summarizeexternalroutes being redistributed into OSPF. It is not used for summarizing internal OSPF routes like SVIs defined within an OSPF area.
* C) & D) summary-address 10.1.0.0/16:Same issue as B; incorrect command for summarizing internal OSPF routes.
* E) area 0 range 10.1.0.0/16:Similar to A, this uses the area range command. It correctly shows the SVIs configured for OSPF Area 0 first. However, like A, this command performs inter-area summarization on an ABR and does not suppress the specific LSAswithinArea 0.
* Conclusion:The question asks for something that OSPFv2 cannot do: advertiseonlya summary route within the same area while suppressing specifics. Therefore, none of the configurations will achieve the exactstated outcome. However, if the question is flawed and intends to ask which configuration uses the correct command structure for summarizinginternalOSPF routes (even if only effective between areas), then the area range command is the relevant one. Both A and E use this command. Option E is slightly better structured as it shows the interfaces being added to OSPF Area 0 first. Assuming this is the intended direction despite the impossibility of the specific request, E is the most plausible choice among the given options.
References:RFC 2328 (OSPFv2), OSPF Configuration Guides for AOS-CX (explaining area range for ABRs and summary-address for ASBRs). This relates to the “Routing” (16%) objective.

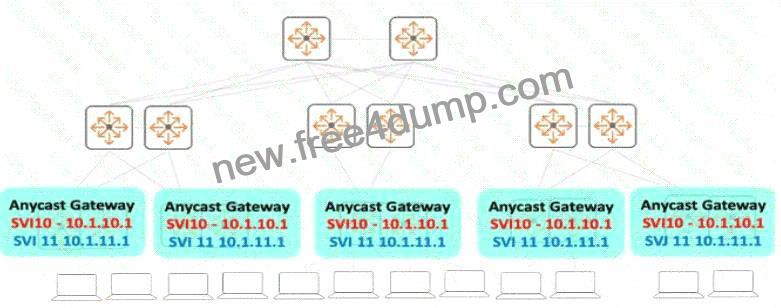

In an EVPN VXLAN distributed overlay network, excessive ARP packet replication (flooding) to all leaf switches is observed. We need the command to optimize this.
* EVPN ARP Optimization:EVPN uses its control plane (BGP) to distribute MAC and IP address reachability information. Leaf switches (VTEPs) learn these mappings. To reduce ARP flooding across the VXLAN fabric:
* ARP Suppression:VTEPs intercept ARP requests. If the VTEP already knows the MAC address for the requested IP (learned via EVPN), it can suppress the ARP request, preventing it from being flooded over VXLAN.
* Proxy ARP:VTEPs intercept ARP requests. If the VTEP knows the MAC for the requested IP, it can generate an ARP replyon behalfof the remote host.
* AOS-CX Commands:These features are configured within the EVPN context.
* evpn arp-suppression (B): Enables the ARP suppression feature for EVPN.
* evpn ip proxy-arp (C): Enables the proxy ARP feature for EVPN.
* Options A and D use standard interface/VLAN level arp-suppression or proxy-arp commands, which are not specific to optimizing flooding within the EVPN VXLAN fabric itself.
* Conclusion:To optimize by reducing the replication/flooding of ARP packets across the EVPN VXLAN overlay, enabling evpn arp-suppression (Option B) is the direct command. This leverages the EVPN control plane knowledge to stop unnecessary ARP flooding.
References:AOS-CX EVPN Configuration Guide (ARP Suppression, Proxy ARP features). This relates to
“Switching” (19%) and “Routing” (16%) objectives in the context of overlays.

The goal is to make the adjacent router prefer routes exported by AGG-SW2 over AGG-SW1 for iBGP and eBGP routes to AS65000. Both switches use a route-map BGP-EXPORT with an ip-prefix list local-export.
BGP path selection uses attributes like local preference, AS path length, and metric to determine the preferred route.
* Analysis of Options:
* Option A:Setting local-preference 200 affects iBGP route selection within the same AS but has no impact on eBGP peers (external AS65000), as local preference is not advertised externally.
* Option B:Prepending the AS path with 65345 65345 65345 65345 increases the AS path length for routes exported by AGG-SW1, making them less preferred by the adjacent router (both iBGP and eBGP peers) compared to AGG-SW2’s routes, which have a shorter AS path.
* Option C:Setting metric 200 affects the MED (Multi-Exit Discriminator), which is used for eBGP route selection within the same AS but is less influential than AS path length and not applicable for iBGP.
* Option D:Incorrect syntax (set as-path without prepend) and does not achieve the desired effect.
* Why Option B is Correct:BGP route selection prioritizes the shortest AS path for both iBGP and eBGP. By prepending AS 65345 multiple times to AGG-SW1’s exported routes, AGG-SW1’s routes appear less attractive due to a longer AS path, causing the adjacent router to prefer AGG-SW2’s routes.
This is a standard BGP traffic engineering technique.
* Relevance to Certification Objectives:
* Routing (16%):Involves designing and troubleshooting BGP routing topologies, including manipulating path attributes like AS path.
* Troubleshooting (10%):Includes remediating BGP routing issues by adjusting route-maps.
References:
HPE Aruba Networking AOS-CX Configuration Guide: BGP Configuration, covering route-maps and AS path prepending.
HPE7-A06Study Guide: Details BGP path selection and traffic engineering.
HPE Aruba Networking Technical Documentation: BGP Route Manipulation, explaining AS path prepending for route preference.

Explanation:

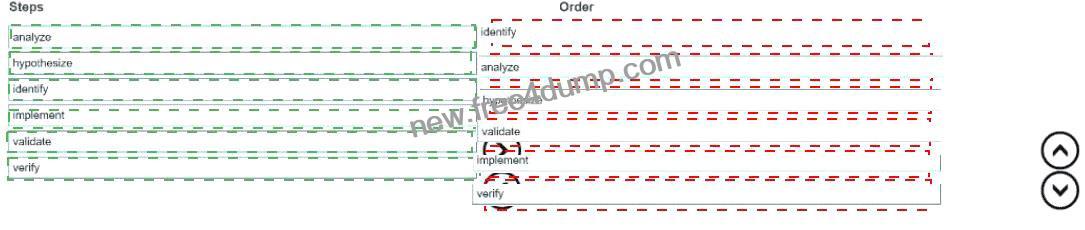

The correct order is:
* identify
* analyze
* hypothesize
* validate
* implement
* verify

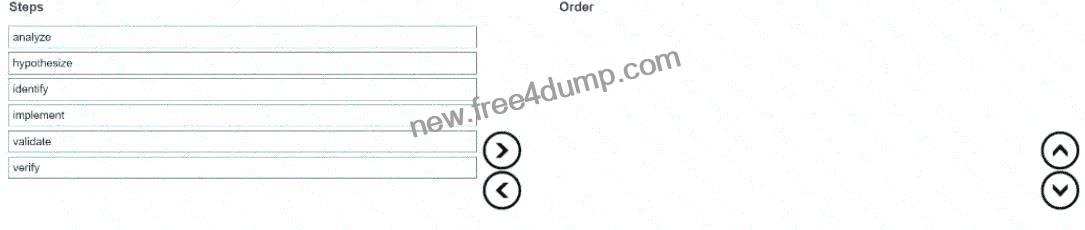

This question requires arranging standard troubleshooting steps into a logical sequence. A systematic approach is crucial for effective network troubleshooting.
* identify:The first step is always to clearly identify and define the problem. What are the symptoms?
Who is affected? What is the scope? When did it start? Understanding the problem precisely is essential before proceeding.
* analyze:Once the problem is identified, gather relevant data and analyze the situation. This involves checking logs, looking at configurations, examining network topology diagrams, checking status commands, and potentially capturing packets. This analysis helps build context around the identified issue.
* hypothesize:Based on the identification and analysis, form a hypothesis (or multiple hypotheses) about the probable cause of the problem. This involves using technical knowledge and experience to theorize what might be wrong.
* validate:Test the hypothesis to determine if it’s correct. This step involves performing specific tests or checks designed to confirm or refute the theory. For example, if the hypothesis is a bad cable, test the cable. If it’s a routing issue, check the routing table and perform trace routes. This step validates the cause before implementing a fix.
* implement:Once the cause has been validated, implement the solution. This could involve replacing hardware, correcting configuration, clearing states, etc.
* verify:After implementing the solution, verify that the original problem is resolved. It’s also critical to check that the fix hasn’t introduced any new issues. Monitor the system to ensure stability.
References:Standard Network Troubleshooting Methodologies (e.g., CompTIA Network+, Cisco troubleshooting models), ITIL Problem Management processes. This directly relates to the “Troubleshooting” (10%) objective, which emphasizes performing advanced troubleshooting and remediation.

This question asks about 802.1X functionality in an AOS-10 environment involving Gateway Clusters.
* AOS-10 Gateway/802.1X Architecture:
* Authenticator:The Access Point (AP) typically acts as the 802.1X authenticator, handling EAPoL frames with the client.
* RADIUS Proxy:The Gateway Cluster (specifically the cluster leader or UDG anchor) often acts as a RADIUS proxy, forwarding RADIUS messages between the APs and the central RADIUS server (e.g., ClearPass). This simplifies RADIUS configuration as the server only needs to know about the gateway cluster.
* CoA:Change of Authorization messages from the RADIUS server are typically sent to the device acting as the RADIUS client, which is the Gateway Cluster when operating in proxy mode.
* Mobility (L2 vs L3):Roaming behavior and User Designated Gateway (UDG) assignment can differ based on whether clients maintain their IP address (L2 mobility) or potentially require new IP information (L3 mobility). L2-connected gateway deployments generally allow for more seamless UDG persistence compared to L3-connected deployments where the client might roam across subnet boundaries managed by different gateways.
* Re-authentication:Seamless roaming mechanisms aim to minimize full re-authentications during roaming events.
* Analysis of Options:
* A: Full re-authentication after re-association on L3-connected gateways might occur in some scenarios but contradicts the goal of seamless roaming.
* B: States the UDG remains fixed on L2-connected but not on L3-connected gateways. This aligns with the architectural differences in handling mobility across L2 vs L3 boundaries within a cluster.
* C: Incorrect. CoA is generally sent to the RADIUS client/proxy (the Gateway Cluster), not always directly to the APs.
* D: Correct. Gateways commonly act as a RADIUS proxy, while the AP remains the authenticator handling EAPoL with the client.
* E: Incorrect. The RADIUS proxy function is not limited to only Tunnel and Bridged modes.
* Conclusion:Options B and D accurately describe common characteristics of 802.1X operation within an AOS-10 Gateway Cluster architecture.
References:Aruba AOS-10 documentation (Gateway Clusters, User-Based Tunneling, 802.1X/RADIUS interaction, L2/L3 Mobility). This relates to “Authentication/Authorization” (9%), “Connectivity” (9%), and
“WLAN” (9%) objectives.

The goal is to enable Bidirectional Forwarding Detection (BFD) for eBGP neighbors 10.10.10.2 and
10.10.20.2 on the AOS-CX VSF stack (AS 65000). Global BFD settings are already configured. We need the specific commands to link BFD state to the BGP neighbor relationship.
* BFD for BGP Configuration:Requires enabling the fall-over bfd parameter for the specific neighbor within the router bgp <asn> configuration hierarchy.

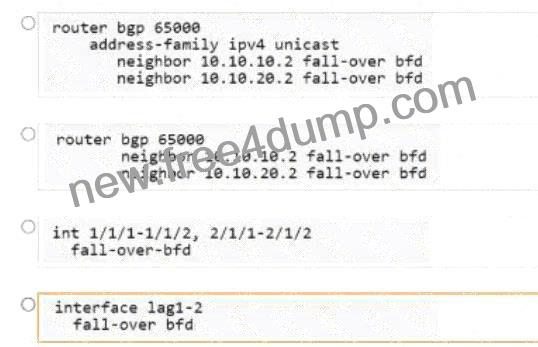

* Analyzing the Options (New Image):
* Option 1 (Top):
router bgp 65000
address-family ipv4 unicast
neighbor 10.10.10.2 fall-over bfd
neighbor 10.10.20.2 fall-over bfd
This enables BFD specifically within the ipv4 unicast address family context for both neighbors. This is a valid configuration location.
* Option 2 (Second):
router bgp 65000
neighbor 10.10.10.2 fall-over bfd
neighbor 10.10.20.2 fall-over bfd
This enables BFD directly under the main neighbor <ip> configuration lines within router bgp 65000. This typically applies BFD to all address families configured for that neighbor relationship (including IPv4 unicast). This is also a valid and common configuration location.
* Option 3 (Third):
int 1/1/1-1/1/2, 2/1/1-2/1/2
fall-over-bfd
Incorrect. Applies BFD configuration under an interface range context, which is not how BFD is linked to BGP sessions.
* Option 4 (Bottom):
interface lag1-2
fall-over bfd
Incorrect. Applies BFD configuration under an interface LAG range context, which is not how BFD is linked to BGP sessions.
* Comparing Valid Options (1 vs 2):Both Option 1 and Option 2 correctly use the fall-over bfd command under router bgp. Option 1 provides per-address-family granularity, while Option 2 applies it to the neighbor generally. Without a specific requirement to enable BFDonlyfor IPv4, applying it at the neighbor level (Option 2) is often simpler and sufficient. Both achieve the goal for the required IPv4 peering. In many documentation examples, the configuration is shown at the neighbor level unless per- AF control is explicitly needed.
* Conclusion:Both Option 1 and Option 2 show valid configuration methods. Option 2 is arguably slightly more common/general when BFD is desired for the overall neighbor relationship.
References:AOS-CX BFD Guide, AOS-CX BGP Guide (neighbor commands, fall-over bfd option). This relates to “Routing” (16%) and “Network Resiliency and virtualization” (8%) objectives.

The question asks for the minimal configurations required for Multiple Spanning Tree Protocol (MSTP) to work correctly on AOS-CX switches.
* Analysis of Options:
* Option A:Correct. The MSTP region name must be configured to define the MSTP region and ensure switches belong to the same region.
* Option B:Incorrect. Bridge priority is optional and defaults to 32768; it’s not mandatory for MSTP functionality.
* Option C:Correct. The MSTP revision number is required to ensure consistency across switches in the same region.
* Option D:Incorrect. Enabling MSTP on interfaces is automatic for VLAN-enabled ports; explicit configuration is not mandatory.
* Option E:Incorrect. Creating MSTP instances is optional and only needed for specific VLAN-to- instance mappings.
* Why A and C are Correct:MSTP requires a consistent region configuration across all switches to function correctly. The minimal configuration includes:
* MSTP region name:Defines the region (e.g., spanning-tree config-name REGION1) to group switches.
* Revision number:Ensures region consistency (e.g., spanning-tree config-revision 1).
These settings ensure switches form a single MSTP region, allowing VLAN-to-instance mappings (default instance 0 if not specified) and loop prevention. Other settings, like bridge priority or explicit instance creation, are optional and not strictly required for basic MSTP operation.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Designing and troubleshooting MSTP for redundancy and fault tolerance.
* Switching (19%):Implementing Layer 2 technologies like MSTP for loop prevention.
References:
HPE Aruba Networking AOS-CX Configuration Guide: MSTP Configuration, detailing region and revision requirements.
HPE7-A06Study Guide: Covers MSTP setup and best practices.
HPE Aruba Networking Technical Documentation: Spanning Tree Protocols for AOS-CX.

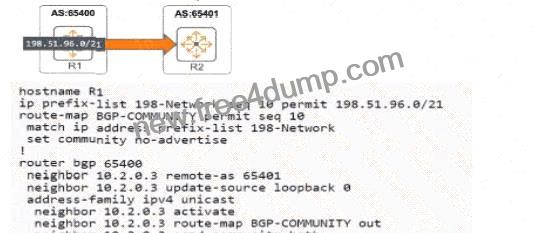

The question asks for the effects of adding the command neighbor 10.2.0.3 send-community both to the BGP configuration under the IPv4 address family context for neighbor R2 (10.2.0.3) on router R1.
* send-community both:This command instructs R1 to send both standard (RFC 1997) and extended (RFC 4360) BGP community attributes to neighbor R2. By default, communities are not sent.
* BGP Capability Negotiation:Adding or changing features like community advertisement modifies the BGP capabilities exchanged between neighbors during session establishment. Any change to these capabilities requires the BGP session to be reset (flap) so that the peers can renegotiate using the new capabilities.
* Analysis of Options (Select Two):
* A: Correct (partially). It enables R1 tosendstandard and extended communities. The ability to receivedepends on the peer and local config. The capability isnegotiatedupon session reset.
* B: Incorrect. Changing capabilities requires the session to flap; it’s not without consequence.
* C: Incorrect. It primarily enablesoutboundsending from R1. Inbound acceptance is implicit if the neighbor is activated.
* D: Correct. Modifying BGP neighbor capabilities, such as enabling send-community, necessitates a BGP session reset (flap) for the change to take effect.
* E: Incorrect terminology (“import/export”, “type-1/type-2 communities”).
* Conclusion:The command enables R1 to send communities (A describes the purpose/capability), and adding this command to an existing session will cause the session to flap for renegotiation (D describes the immediate consequence).
References:RFC 1997, RFC 4360, AOS-CX BGP Configuration Guide (communities, neighbor configuration). This relates to the “Routing” (16%) objective.

The question asks which tables are synchronized between a pair of CX 8325 switches in a Virtual Switching Extension (VSX) cluster. VSX is a high-availability solution that synchronizes specific tables to ensure consistent operation across both switches.
* Analysis of Options:
* A. BGP Neighbors:BGP neighbor tables are not synchronized in VSX; each switch maintains its own BGP sessions.
* B. MAC address:Correct. VSX synchronizes the MAC address table to ensure consistent Layer
2 forwarding across both switches.
* C. Spanning-Tree Protocol (STP):STP states are not synchronized; each switch runs its own STP instance, though they coordinate to avoid loops.
* D. IP Routing:Correct. VSX synchronizes the IP routing table to ensure consistent Layer 3 forwarding.
* E. Link Layer Discovery Protocol (LLDP):LLDP information is not synchronized; each switch maintains its own neighbor information.
* Why B and D are Correct:In a VSX cluster, the MAC address table and IP routing table are synchronized to ensure seamless Layer 2 and Layer 3 operations. This synchronization allowsboth switches to share a common view of the network, enabling features like active-active forwarding and hitless failover. The vsx-sync feature in AOS-CX ensures these tables are kept consistent across the VSX pair.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Involves designing and troubleshooting VSX for resiliency and redundancy.
* Switching (19%):Includes implementing and troubleshooting Layer 2 technologies like MAC address tables.
* Routing (16%):Covers IP routing table synchronization in VSX environments.
References:
HPE Aruba Networking AOS-CX Configuration Guide: VSX Configuration, detailing table synchronization.
HPE7-A06Study Guide: Covers VSX architecture and synchronization mechanisms.
HPE Aruba Networking Technical Documentation: VSX Overview, explaining MAC and routing table synchronization.
VSX (Virtual Switching Extension) synchronizes state information between the two switches in a cluster to enable active-active forwarding and provide a single logical view to downstream devices.
Analysis of Options:
A: BGP Neighbors: BGP sessions are typically established independently by each VSX member. While configurations can be synced, the dynamic state/neighbor table itself is not a core VSX synchronization item.
B: MAC address: The MAC address table is synchronized between VSX members. This is crucial for Layer 2 forwarding consistency and allowing either switch to forward traffic destined for a known MAC address learned via the VSX pair.
C: Spanning-Tree Protocol (STP): STP runs independently on each physical switch. VSX uses technologies like MC-LAG to provide loop-free active-active paths downstream, reducing reliance on STP blocking, but the STP state itself isn’t synchronized via the ISL.
D: IP Routing: While the full IP routing table (RIB) is built independently on each switch via routing protocols, VSX Active Gateway synchronizes necessary Layer 3 information (like virtual gateway IP and MAC, and potentially ARP entries) to ensure consistent first-hop routing and failover. Some sources might broadly categorize ARP synchronization under L3/IP routing context in VSX. Given that the ARP table (essential for L3 forwarding consistency) is synchronized, and it’s not listed separately, “IP Routing” might encompass this synchronization aspect.
E: Link Layer Discovery Protocol (LLDP): LLDP information relates to physically connected neighbors of each switch and is not synchronized across the VSX ISL.
Conclusion: The MAC address table (B) is definitively synchronized. The ARP table is also synchronized, which is fundamental for Layer 3 forwarding consistency provided by Active Gateway. As ARP is not explicitly listed, and “IP Routing” (D) is, D is the most likely second answer intended to cover the necessary L3 state synchronization (primarily ARP and Active Gateway state) performed by VSX.
References: AOS-CX VSX Guide (specifically sections on State Synchronization, ISL, Active Gateway), VSX Fundamentals documentation. This relates to “Network Resiliency and virtualization” (8%) and
“Switching” (19%) objectives.
