QUESTION 172

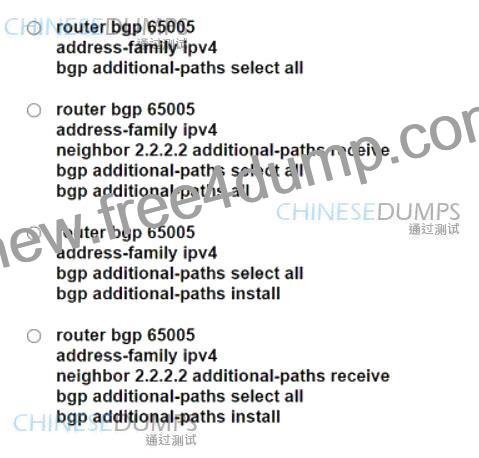

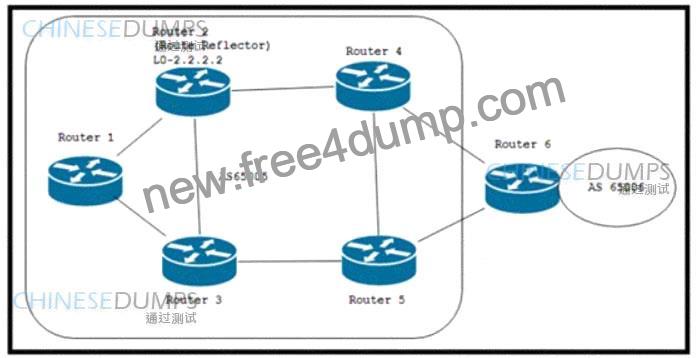

Refer to the exhibit. The initial BGP configuration of the network is complete, and all the routers have established BGP neighborship. The engineer configured Router 2 with additional BGP paths to install and advertise more paths to Router 1 and Router 3. Which configuration must the engineer apply to Router 1 and Router 3 so that they will use and install all additional paths?

QUESTION 173

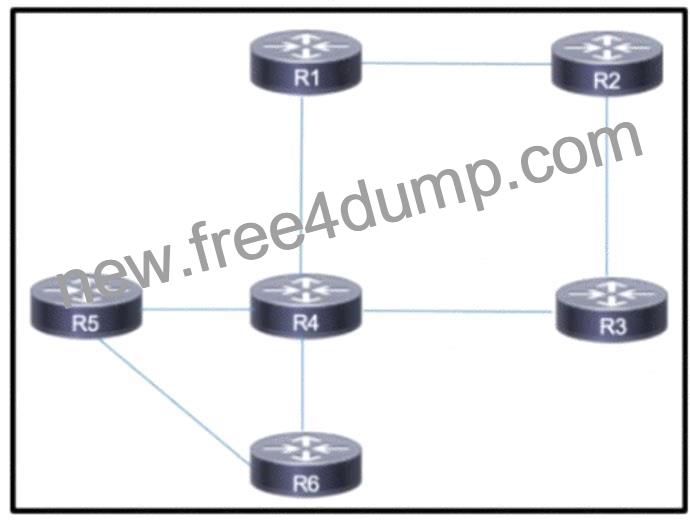

Refer to the exhibit. This network is deployed with all connected links configured to run IS-IS. The routing protocol is enacted globally on each router, and the network engineer expects full routing Information to be shared among all routers. R5 is receiving routes from R4 but is missing routes from R1. Which action corrects the issue so that all routes are shared among the routers?

QUESTION 174

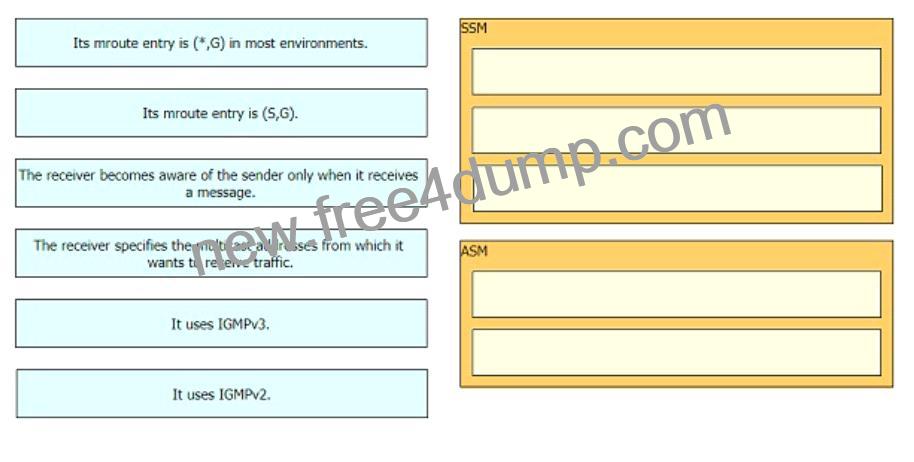

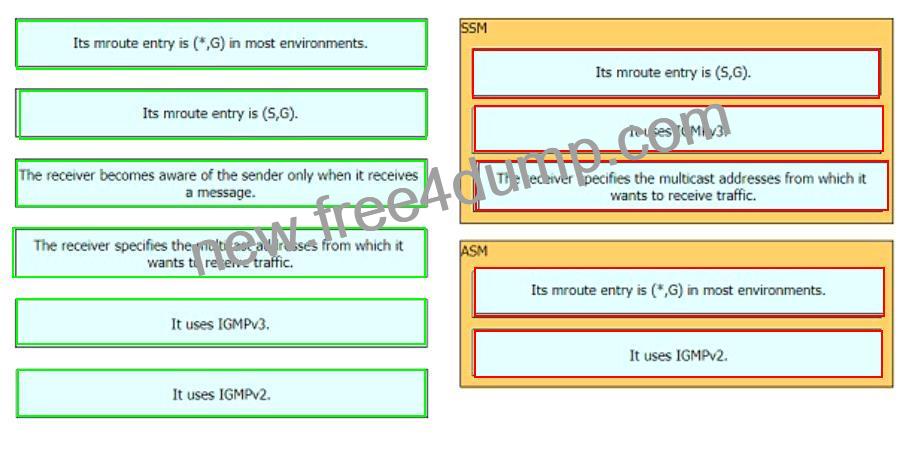

Drag and drop the features about multicast from the left onto the multicast protocols on the right. Not all options ate used.

QUESTION 175
Refer to the exhibits.

All links inside the network are configured at a default cost of one inside the fully converged OSPF domain. Given the configuration from XR1, which interface does traffic from XR1 that is destined to the loopback interface of XR6 select for the exiting interface?

QUESTION 176
Refer to the exhibit.

Refer to the exhibit The branch office in area 10 is connected to HQ via Frame Relay uplinks with bandwidth constraints After a recent implementation of QoS on the R2 and R3 networks the system has been logging %SYS-2-MALLOCFAIL: Memory allocation of 65536 bytes failed from 0x224E321, alignment 0 messages To reduce traffic load and memory utilization on R2 and R3 the network engineer configured R1 to announce only one user subnet per location by issuing the summary address 192.168.0.0 255.255.248.0 command en R1 However, the engineer noticed that router R2 still has two routes and a summary address from HQ and R3 also has two routes from HQ Which two actions must the engineer take on R1 to fix the issue so that only one route is announced’ (Choose two.)

QUESTION 177

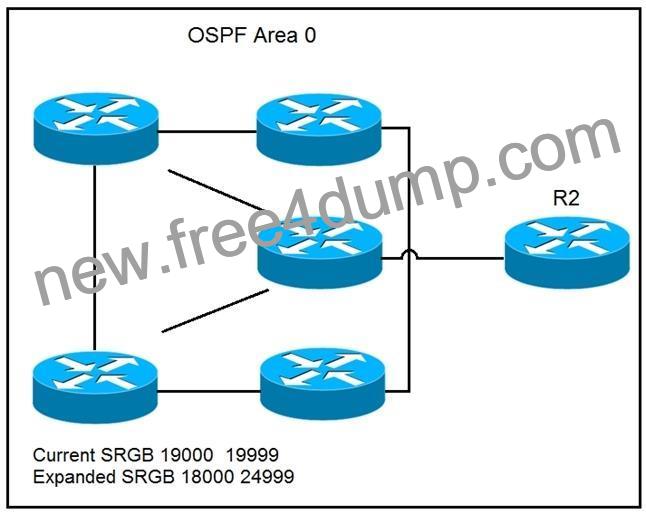

Refer to the exhibit. A network operator wants to expand the segment routing global block in upcoming maintenance.
The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain.
Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?

QUESTION 178
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
– Refer to the Tasks tab to view the tasks for this lab item.
– Refer to the Topology tab to access the device console(s) and perform the tasks.
– Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
– All necessary preconfigurations have been applied.
– Do not change the enable password or hostname for any device.
– Save your configurations to NVRAM before moving to the next item.
– Click Next at the bottom of the screen to submit this lab and move to the next question.
– When Next is clicked, the lab closes and cannot be reopened.
Topology

Tasks

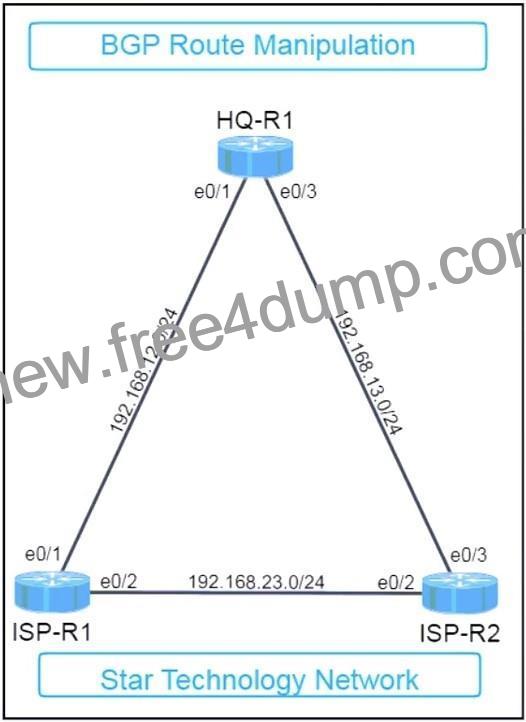

Star Technology has decided to establish connectivity with an ISP for accessing the Internet. In phase 1, the approach is to establish a dual-homed connection from HQ-R1 to ISP-R1 and ISP- R2. This will provide some degree of redundancy in the connectivity between HQ-R1 and ISP routers.
Based on network design, an autonomous system of Star Technology is 1, and AS of ISP is 2. A network Implementation Engineer has already initiated the configuration; trouble-shooting is required to find out and complete missing configurations. Moreover, configuration is to be established in a way that links between HQ-R1 and ISP-R1 can be used as the preferred path for reaching AS 2.
Below are tasks to be achieved to include the missing commands and complete the troubleshooting Task 1:
On HQ-R1, configure BGP for Autonomous System 1. Establish EBGP relationship with ISP-R1 and ISP-R2.
Notes:
After performing troubleshooting at HQ-R1, the following outcome should appear.
%BGP-5-ADJCHANGE: neighbor 192.168.12.2 Up
%BGP-5-ADJCHANGE: neighbor 192.168.13.2 Up
Task 2:
On HQ-R1, Advertise LBO interface as a prefix in BGR
Task 3:
On HQ-R1, configure the route map with the name loc. Set the local preference attribute as 900.
Task 4:
On HQ-R1, define the path between HQ-R1 – ISP-R1 as the preferred path for reaching AS 2.
Route map configured in task 3 to be used in the inbound direction.

QUESTION 179
Refer to the exhibit.

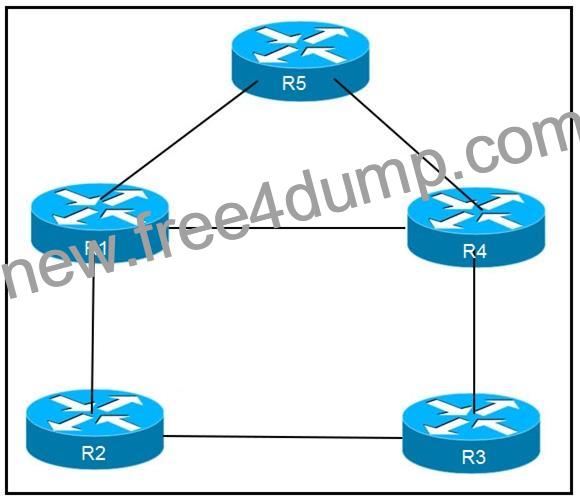

An engineer is addressing an IS-IS design issue which is running within the topology. All links are running on FastEthernet, except the link between R5 and R4, which is Gigabit Ethernet. Which statement about the design is true?

QUESTION 180
Refer to the exhibit.

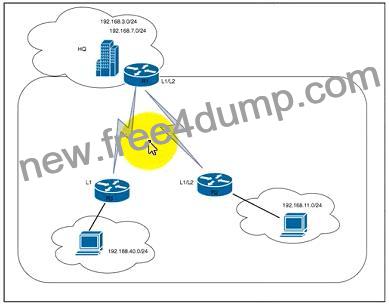

An engineer applied the configuration on R1 to prevent network 192.168.1.0/24 from being propagated outside of area 5. After the change, users have reported they are not able to access any of the application servers that were working before. While checking the routing table of the peer router. The engineer notices R1 stopped propagating any routes outside are 5. Which action must be taken to fix the problem?

QUESTION 181
Refer to the exhibit. A service provider technician is working on a multicast issue for a customer.
While checking the multicast table, the technician notices that no flags are present for the (1.1.1.1, 239.1.1.1) entry, yet flags are present for the (1.1.1.1, 232.1.1.1) entry.
Which factor might explain this issue?

QUESTION 182
Refer to the exhibit.

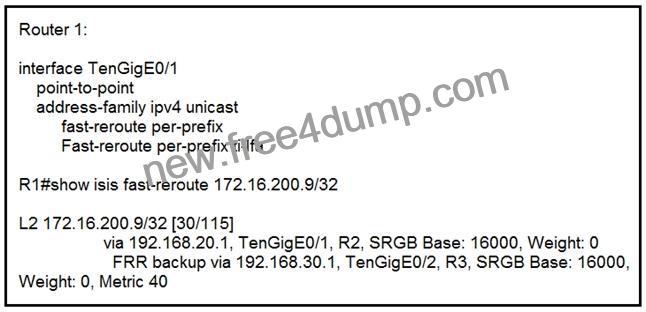

Router 1 is connected to router 2 on interface TenGigE0/1. Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?

QUESTION 183
Which keyword is used with the match route-type command to redistribute the external BGP and IGP routes using route map?

QUESTION 184
A network engineer is troubleshooting OSPF multiare A.
Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

QUESTION 185
Refer to the exhibit.

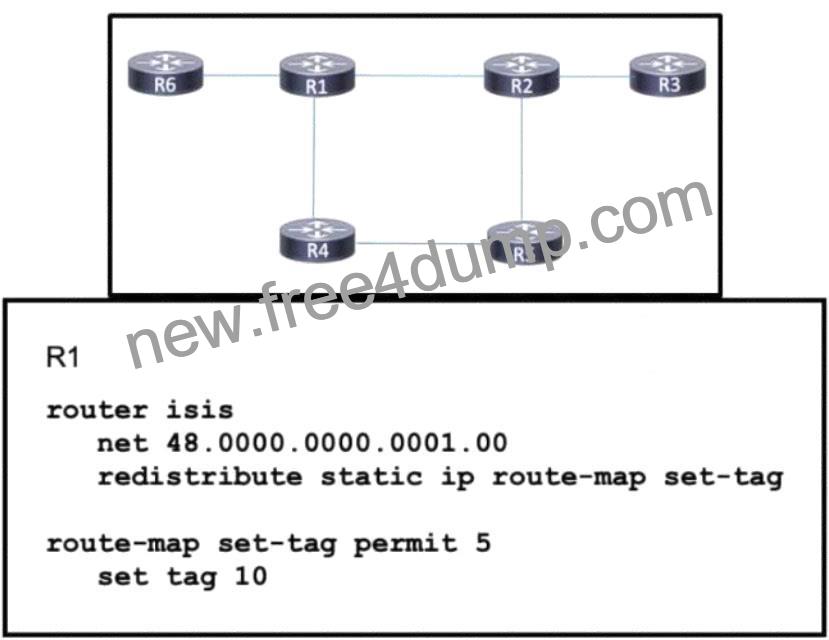

IS-IS runs in the network and all routers are in the same area R1 statically routes to distribute traffic with R6 and the networking team has redistributed the static routes on R1 into IS-IS Hosts on R3 need access to servers connected to R6 A tag has been applied to the routes to manipulate routes along the path but routers running IS-IS are still unable to reach the redistributed routes Which action must the team take to resolve the issue?

QUESTION 186
Refer to the exhibit.

Early in the growth cycle of a small enterprise the network-engineering team implemented segment routing to support automation of the IPv4 network As the network grew organically more devices were added and the company migrated to SRv6 The company is now planning to significantly expand the number of hosts connected to R2 and R6 which will require further path manipulation Which action must the team take to customize the route that traffic takes between endpoints in the network?

QUESTION 187

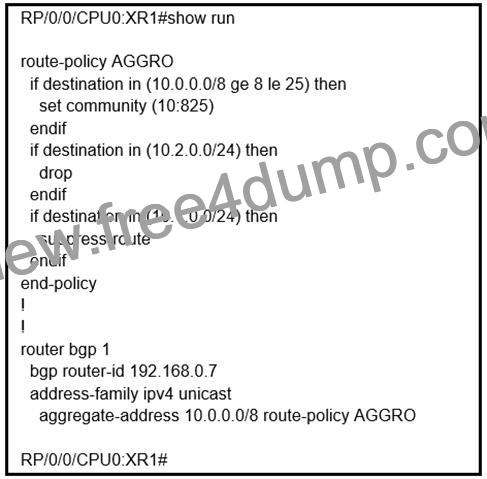

Refer to the exhibit. A network operator is working to filter routes from being advertised that are covered under an aggregate announcement.
The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate.
Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?

QUESTION 188
Refer to the exhibit.

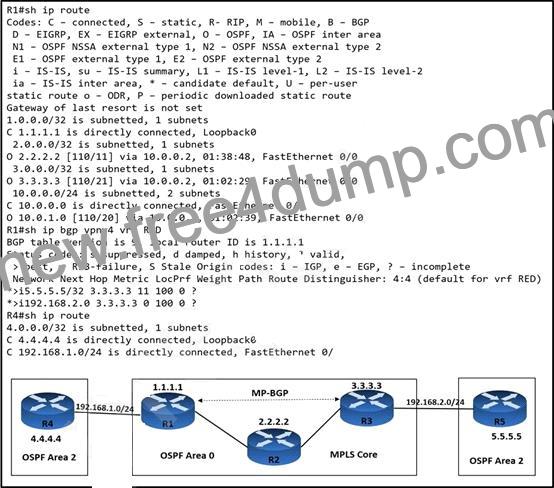

An engineer is troubleshooting connectivity issues on the MPLS core network. A customer connected through R4 cannot reach the OSPF domain on R5. While checking the routing table of R1, the engineer cannot see all the routes from R3 and R5. Which task must the engineer perform so that R4 is able to reach R5?

QUESTION 189

Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas.

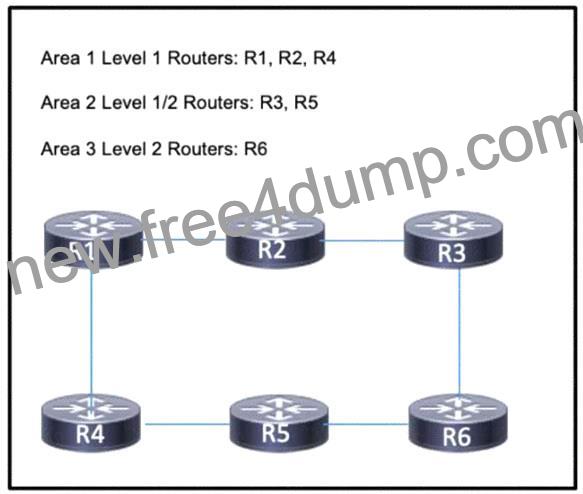

Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?

QUESTION 190
After you change the IP address on an IOS XR router, you cannot ping the new address.
Which step did you forget to complete?

QUESTION 191
After an engineer configures BGP in R1, it starts receiving this message
*Jun 29 13:30:50.122: %BGP-5-ADJCHANGE: neighbor 192.168.10.1 Down User reset Jun 29 13:30:52.341: %BGP-3-NOTIFICATION: sent to neighbor 192.168.10.1 2/6 (unacceptable hold time)
0 bytes
Which action makes the peering come back up again?

QUESTION 192
A network operator working for a telecommunication company with an employee id: 4074:92:707 is planning to implement the Nonstop Forwarding (NSR) feature on the customer’s core network. After getting the configuration ready for NSR. on which router should the operator implement NSR changes?

QUESTION 193
Refer to the exhibit.

Refer to the exhibit. A network engineer is configuring router R3 to handle multicast streams, but Host-2 cannot send subscriptions messages to the IPTV source. Which configuration must the engineer apply to router R3 so it passes the IPTV stream to Host-2?

QUESTION 194

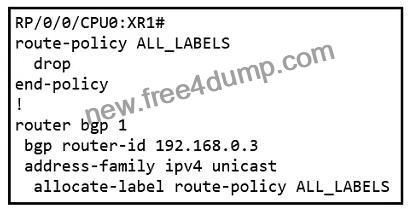

Refer to the exhibit. A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

QUESTION 195
Refer to me exhibit.

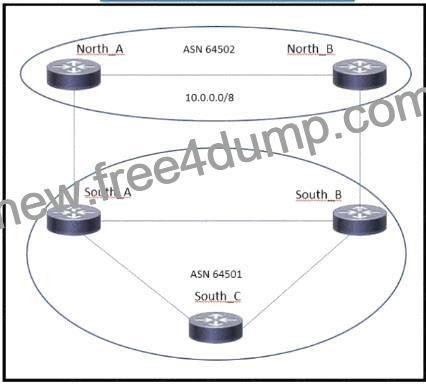

A network engineer sets up a multihoming eBGP topology where multiple Autonomous Systems connect to ASN 64501. The engineer wants to block all the routers coming from ASN 64502. but allow all the others.
For that purpose, the following AS Pam prefix 1st s being used:

What must be fixed to achieve this result?
