Free Juniper JN0-664 Exam 2024 Practice Materials Collection [Q39-Q53]

Rate this post

Free Juniper JN0-664 Exam 2024 Practice Materials Collection

JN0-664 Exam Info and Free Practice Test All-in-One Exam Guide Jun-2024

QUESTION 39
Exhibit

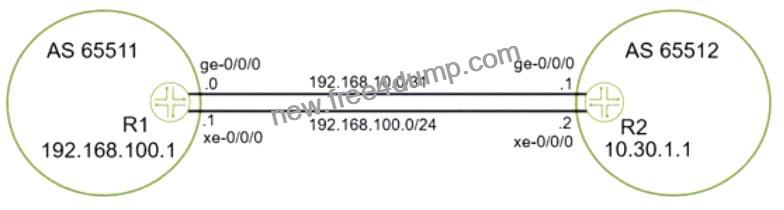

You want to use both links between R1 and R2 Because of the bandwidth difference between the two links, you must ensure that the links are used as much as possible.
Which action will accomplish this goal?

Define a policy to tag routes with the appropriate bandwidth community.

Disable multipath.

Ensure that the metric-out parameter on the Gigabit Ethernet interface is higher than the 10 Gigibit Ethernet interface.

Enable per-prefix load balancing.

QUESTION 40
Which two statements are correct about reflecting inet-vpn unicast prefixes in BGP route reflection? (Choose two.)

Clients add their originator ID when advertising routes to their route reflector.

Route reflectors add their cluster ID to the AS path when readvertising client routes.

Route reflectors do not change any existing BGP attributes by default when advertising routes.

A BGP peer does not require any configuration changes to become a route reflector client.

QUESTION 41
You are configuring a BGP signaled Layer 2 VPN across your MPLS enabled core network. Your PE-2 device connects to two sites within the s VPN In this scenario, which statement is correct?

By default on PE-2, the site’s local ID is automatically assigned a value of 0 and must be configured to match the total number of attached sites.

You must create a unique Layer 2 VPN routing instance for each site on the PE-2 device.

You must use separate physical interfaces to connect PE-2 to each site.

By default on PE-2, the remote site IDs are automatically assigned based on the order that you add the interfaces to the site configuration.

QUESTION 42
Which two statements describe PIM-SM? (Choose two.)

Routers without receivers must periodically prune themselves from the SPT.

Traffic is only forwarded to routers that request to join the distribution tree.

Traffic is initially flooded to all routers and an S,G is maintained for each group.

Routers with receivers send join messages to their upstream neighbors.

QUESTION 43
In IS-IS. which two statements are correct about the designated intermediate system (DIS) on a multi-access network segment? (Choose two.)

On the multi-access network, each router forms an adjacency to every other router on the segment.

On the multi-access network, each router only forms an adjacency to the DIS.

A router with a priority of 1 wins the DIS election over a router with a priority of 10.

A router with a priority of 10 wins the DIS election over a router with a priority of 1.

QUESTION 44

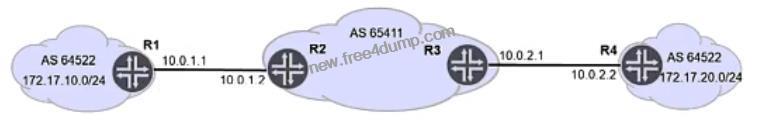

You are asked to exchange routes between R1 and R4 as shown in the exhibit. These two routers use the same AS number.
Which two steps will accomplish this task? (Choose two.)

Configure the BGP group with the advertise-peer-as parameter on R2 and R3.

Configure the BGP group with the as-override parameter on R1 and R4.

Configure the BGP group with the advertise-peer-as parameter on R1 and R4.

Configure the BGP group with the as-override parameter on R2 and R3.

QUESTION 45

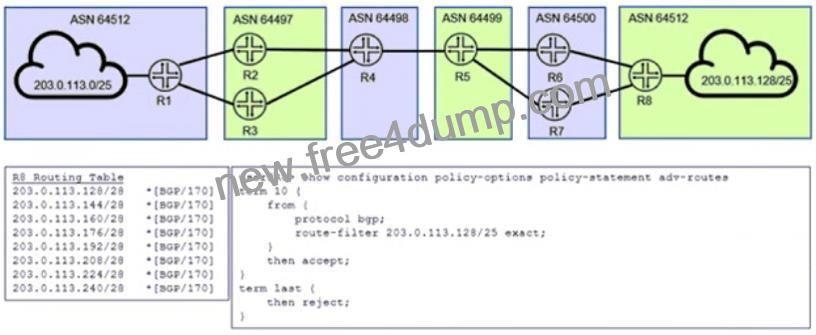

You are attempting to summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500.
You implement the export policy shown in the exhibit and all routes from the routing table stop being advertised.
In this scenario, which two steps would you take to summarize the route in BGP? (Choose two.)

Replace exact in the export policy with orlonger.

Remove the from protocol bgp command from the export policy.

Add the set protocols bgp family inet unicast add-path command to allow additional routes to the RIB tables.

Add the set routing-options aggregate route 203.0.113.128/25 command.

QUESTION 46
Exhibit

Based on the configuration contents shown in the exhibit, which statement is true?

Joins for group 224.7.7.7 are rejected if the source address is 192.168.100.10

Joins for any group are accepted if the group count value is less than 25.

Joins for group 224.7.7.7 are always rejected, regardless of the group count.

Joins for group 224.7.7.7 are accepted if the group count is less than 25

QUESTION 47
Which two statements are correct regarding bootstrap messages that are forwarded within a PIM sparse mode domain? (Choose two.)

Bootstrap messages are forwarded only to routers that explicitly requested the messages within the PIM sparse-mode domain

Bootstrap messages distribute RP information dynamically during an RP election.

Bootstrap messages are used to notify which router is the PIM RP

Bootstrap messages are forwarded to all routers within a PIM sparse-mode domain.

QUESTION 48
Exhibit

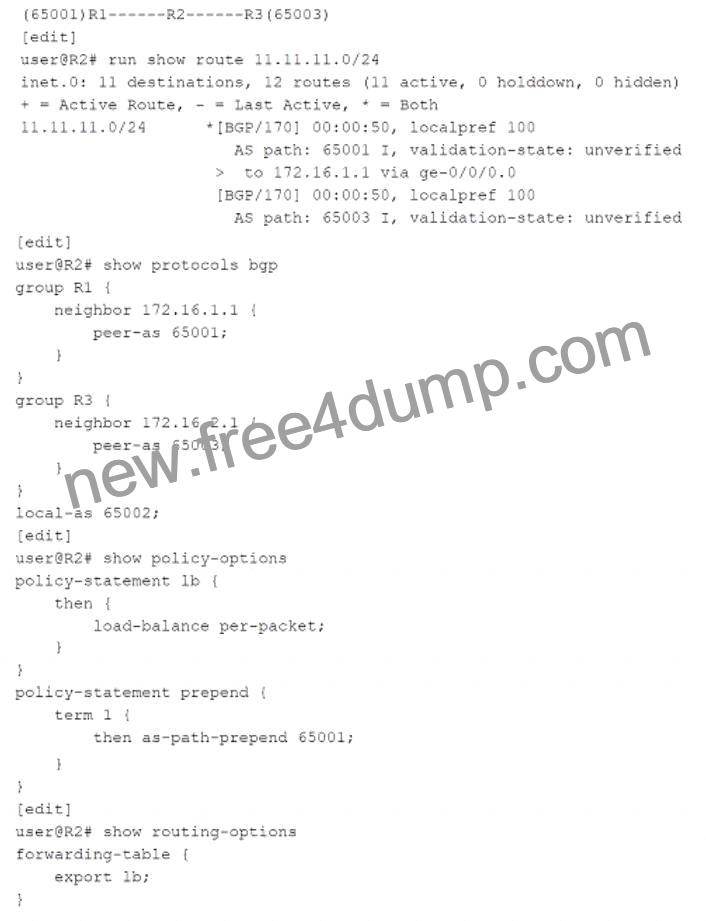

R2 is receiving the same route from R1 and R3. You must ensure that you can load balance traffic for that route.
Referring to the exhibit, which configuration change will allow load balancing?

Configure the multipath parameter under the global BGP configuration.

Apply the prepend policy as an import policy under group R1.

Configure the multipath multiple-as parameter under the global BGP configuration.

Apply the prepend policy as an import policy under group R3.

QUESTION 49
By default, which statement is correct about OSPF summary LSAs?

The metric associated with a summary route will be equal to the lowest metric associated with an individual contributing route.

The area-range command must be installed on all routers.

Type 3 LSAs are advertised for routes in Type 1 LSAs.

All Type 2 and Type 7 LSAs will be summarized into a single Type 5 LSA.

QUESTION 50
You are responding to an RFP for a new MPLS VPN implementation. The solution must use LDP for signaling and support Layer 2 connectivity without using BGP The solution must be scalable and support multiple VPN connections over a single MPLS LSP The customer wants to maintain all routing for their Private network In this scenario, which solution do you propose?

circuit cross-connect

BGP Layer 2 VPN

LDP Layer 2 circuit

translational cross-connect

QUESTION 51
Which two statements are correct about IS-IS interfaces? (Choose two.)

If a broadcast interface is in both L1 and L2, one combined hello message is sent for both levels.

If a point-to-point interface is in both L1 and L2, separate hello messages are sent for each level.

If a point-to-point interface is in both L1 and L2, one combined hello message is sent for both levels.

If a broadcast interface is in both L1 and L2, separate hello messages are sent for each level

QUESTION 52
Exhibit

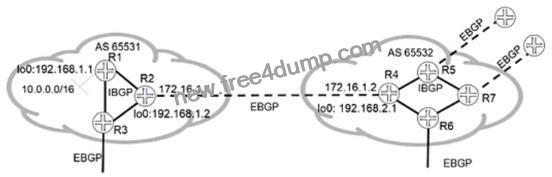

Referring to the exhibit, which three statements are correct about route 10 0 0.0/16 when using the default BGP advertisement rules’? (Choose three.)

R1 will prepend AS 65531 when advertising 10 0.0 0/16 to R2.

R1 will advertise 10.0.0.0/16 to R2 with 192 168 1 1 as the next hop.

R2 will advertise 10.0.0.0/16 to R3 with 192.168.1 1 as the next hop

R4 will advertise 10 0.0 0/16 to R6 with 172.16 1 1 as the next hop

R2 will advertise 10.0.0.0/16 to R4 with 172.16.1.1 as the next hop

QUESTION 53

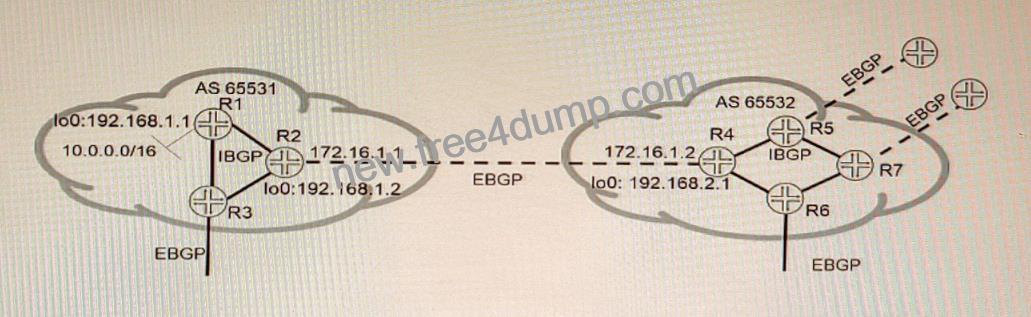

Referring to the exhibit, which three statements are correct about route 10.0.0.0/16 when using the default BGP advertisement rules? (Choose three.)

R2 will advertise 10.0.0.0/16 to R4 with 172.16.1.1 as the next hop.

R2 will advertise 10.0.0.0/16 to R3 with 192.168.1.1 as the next hop.

R1 will advertise 10.0.0.0/16 to R2 with 192.168.1.1 as the next hop.

R1 will prepend AS 65531 when advertising 10.0.0.0/16 to R2.

R4 will advertise 10.0.0.0/16 to R6 with 172.16.1.1 as the next hop.

Juniper JN0-664 exam is a challenging and rigorous certification exam that requires a thorough understanding of Juniper Networks service provider technologies. Earning this certification can help IT professionals enhance their career prospects, increase their earning potential, and gain recognition as experts in their field.

Juniper JN0-664 exam is a professional-level certification exam for service provider professionals seeking to advance their careers. JN0-664 exam is designed to test the candidate’s knowledge and skills in configuring and troubleshooting Junos-based service provider routing platforms and networks. Passing the exam validates the candidate’s expertise in designing, implementing, and maintaining Juniper Networks service provider networks.
