Get Real GB0-191-ENU Exam Dumps [Nov-2022] Practice Tests

Last GB0-191-ENU practice test reviews: Practice Test H3C dumps

NEW QUESTION 113
The XYZ company network is shown in the figure.

There is no logical interface configured on the Router; all hosts can communicate normally. Then there are ___ conflict domains in this network. (Please fill in Arabic numerals)

NEW QUESTION 114
The subnet mask of the IP address 132.119.100.200 is 255.255.255.240, so the IP subnet address where it is located is ______.

132.119.100.0

132.119.100.193

132.119.100.192

132.119.100.128

NEW QUESTION 115
In the switching network shown in the figure, all switches have enabled the STP protocol.

SWA was selected as the root bridge. According to the information in the figure, the ______ port should be set to the Blocking state

P1 of SWB

P2 of SWB

P1 of SWC

P2 of SWC

Insufficient information, unable to judge

NEW QUESTION 116
The correct statement about STP, RSTP and MSTP is ______. (Multiple choice)

RSTP is an optimized version of the STP protocol. The delay for the port to enter the forwarding state is greatly shortened under certain conditions, which shortens the time required for the network to finally reach topological stability.

MSTP cannot converge quickly. When the network topology changes, the originally blocked port needs to wait for a period of time before it becomes the forwarding state.

MSTP is compatible with RSTP, but not compatible with STP.

MSTP can make up for the shortcomings of STP and RSTP. It can not only converge quickly, but also enable the traffic of different VLANs to be forwarded along their respective paths, thereby providing a better load sharing mechanism for redundant links.

NEW QUESTION 117
The MSR router exchanges routing information with the outside world through RIPv2. There are three routes 10.1.1.0/24, 10.1.2.0/24, 10.1.3.0/24 in the routing table, then the following RIP configuration is added to the router:
[MSR-rip-1] summary
Then the router will send out the route of which network segment as follows?

10.1.0.0/16

10.1.2.0/22

10.0.0.0/8

10.1.0.0/22

NEW QUESTION 118
Use the ______ command to specify the operating system software to be used for the next startup.

startup

boot-loader

bootfile

boot startup

NEW QUESTION 119
The Ethernet port Ethernet0/0 of router MSR-1 is configured as follows:
interface Ethernet0/0
ip address 192.168.0.1 255.255.255.0
A three-layer switch is connected to this interface, and this three-layer switch is the default gateway of multiple network segments of the customer’s office network. For security reasons, the customer now requires configuration on the interface Ethernet0/0 of MSR-1 ACL (does not restrict the application direction) to prohibit all users on the office network from pinging 192.168.0.1, which of the following configurations can be used? (multiple choice)

acl number 3000 rule 0 deny icmp destination 192.168.0.1 0 icmp-type echo-reply

acl number 3000 rule 0 deny icmp destination 192.168.0.1 0 icmp-type echo

acl number 3000 rule 0 deny icmp destination 192.168.0.1 0

acl number 3000 rule 0 deny ip destination 192.168.0.1 0 eq icmp

NEW QUESTION 120
The Layer 2 Ethernet switch searches the MAC address table for an entry that matches the destination MAC address of the frame, thereby forwarding the frame from the corresponding interface. If the search fails, the switch will ______.

discard the frame

Send the frame from all other ports except the incoming port

Find fast forwarding table

Find routing table

NEW QUESTION 121
The two empty-configured routers MSR-1 and MSR-2 are connected as follows: HostA—-GE0/0–MSR-1–S1/0———S1/0– MSR-2–GE0/0—-HostB
The WAN interconnection network segment of the two routers is 192.168.10.0/30, and the GE0/0 address of MSR-1 is 172.16.1.1/24.
After configuration, HostA can ping through 172.16.1.1, and the WAN between the two routers is also interoperable.
Now the following configuration is added to MSR-1:
[MSR-1]rip
[MSR-1-rip-1]network 192.168.10.1
[MSR-1-rip-1]network 172.16.1.1
And started the RIP process on MSR-2.
Which of the following configurations must be done on the MSR-2 to ensure that the MSR-2 learns the RIP route? (multiple choice)

[MSR-2-rip-1]network 192.168.10.1

[MSR-2-rip-1]network 0.0.0.0

[MSR-2-rip-1]network *.*.*.*, where *.*.*.* is any IP address

[MSR-2-rip-1]network *.*.*.*, where *.*.*.* is any IP address on MSR-2

NEW QUESTION 122
It is required to set a subnet mask to divide a class B network 172.16.0.0 into as many subnets as possible. Each subnet requires 500 hosts, so the subnet mask should be _____. (Dotted decimal format) slightly

NEW QUESTION 123
There are two hops from the source device to the destination device. Use the tracert command to detect the path. When detecting the first hop, the source device sends a UDP packet with a TTL of 1 to the middle hop; when detecting the second hop, the source device sends a UDP packet with a TTL of 2, and the packet reaches the middle hop first, and the TTL is decremented When the message reaches the destination, the TTL will be decremented to 0. At this time, the destination device will send an ICMP_____ message to the source to inform the source device that it has tracked the destination address.

Time Exceeded

Echo Request

Echo Reply

Port Unreachable

NEW QUESTION 124
It is required to set a subnet mask to divide the Class B network 172.16.0.0 into as many subnets as possible. Each subnet requires 15 hosts, so the subnet mask should be _____. (Dotted decimal format) slightly

NEW QUESTION 125
Divide a class C network segment into subnets. If the subnet mask is 28 bits, then the maximum number of hosts that can be accommodated in each subnet is ____. (Please fill in Arabic numerals)

NEW QUESTION 126
The PC is connected to the port E1/0/2 of the switch SWA, the IP address is 10.1.1.1, and the MAC address is 00-01-02-01-21-23. To ensure network security, you need to configure MAC+IP+ port binding on port E1/0/2.
Which of the following commands is correct?

[SWA] user-bind ip-address 10.1.1.1

[SWA-Ethernet1/0/2]user-bind ip-address 10.1.1.1

[SWA] user-bind ip-address 10.1.1.1 mac-address 0001-0201-2123

[SWA-Ethernet1/0/2]user-bind ip-address 10.1.1.1 mac-address 0001-0201-2123

NEW QUESTION 127
The following statement about the functions of each layer of the OSI reference model is wrong.

The physical layer refers to the original bit stream transmitted on the communication channel (Channel), which defines the mechanical and electrical functions and procedures required for data transmission.

The network layer decides the best route for transmitting the message. The key issue is to determine how the data packet is routed from the source to the destination.

The basic function of the transport layer is to establish and maintain virtual circuits, perform error checking and flow control.

The session layer is responsible for data format processing, data encryption, etc.

The application layer is responsible for providing network services for applications.

NEW QUESTION 128
The IP address 203.108.2.110 is the ______ address.

Type A

Type B

Type C

Class D

NEW QUESTION 129
For the understanding of packet switching, the correct one of the following statements is ______. (Multiple choice)

Packet switching is a switching method based on Store-and-Forward switching

The transmitted information is divided into packets of a certain length and forwarded in units of packets

Each packet carries the address identification of the receiver and the sender, and the packet can be forwarded directly without any operation, thereby improving efficiency

Packet switching includes frame-based packet switching and cell-based packet switching

NEW QUESTION 130
In the process of establishing a PPP session, when authentication is set and the authentication is passed, the PPP link enters the ______ phase.

Establish

Network

Authentication

Dead

Terminate

NEW QUESTION 131

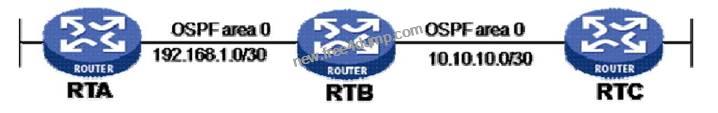

The three MSR routers are connected as shown in the figure. 192.168.1.0/30 is the interconnection network segment between RTA and RTB, and 10.10.10.0/30 is the interconnection network segment between RTB and RTC.

OSPF is running on the interconnection interfaces of the three routers and all belong to Area 0. At the same time, only the three router interconnection interface network segments are published in Area 0.
Assuming that OSPF is operating normally and OSPF neighbors are established successfully, then ______. (Multiple choice)
